Aquilifer Optics
TheOne
2-16×50 SFP · MIL Reticle
01
Versatile 3–9× Magnification
+

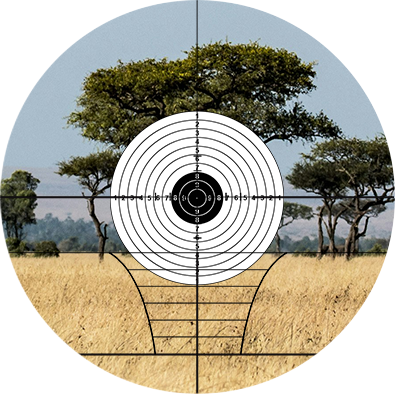

Rapid target acquisition at 3x for close-range/brush hunting, and precise shot placement at 9x for mid-range targets.
02
Superior Eye Relief (3.8" – 4.6")
+
Provides maximum safety against heavy recoil (prevents "scope eye") and allows for a more comfortable, natural shooting position.
03
Dual-Color Illuminated Reticle
+
Red/Green illumination with multi-level brightness control.
04
High-Travel Precision Turrets
+
1/4-MOA per click with a massive $\pm 70$ MOA windage/elevation range.
Specifications
Dimensions
All measurements in millimeters. Tolerances ±0.5mm under standard conditions.
Overall Length
287mm
Tube Diameter
30mm
Objective Lens
Ø24mm
Net Weight
318g

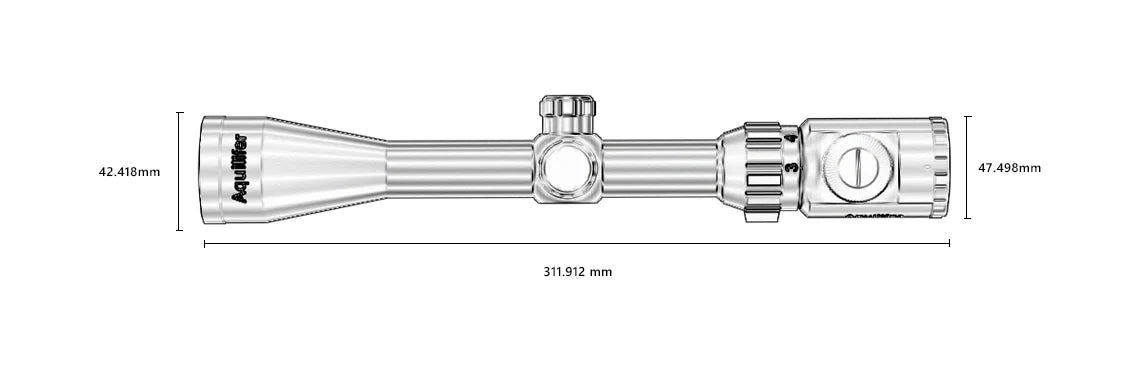

Technical Drawing — Not to Scale
Specifications / Dimensions
Tech Data
Specification
model
3-9X40EG
Magnification
3-9X
Focal Plane
SFP
Reticle
Duplex
Eye Relief
117-96mm
Exit Pupil
13.4-4.38mm
Field of View (100YARDS)
13.41-4.38@100ysd
Total Adjustment Elevation
±70 MOA
Total Adjustment Windage
±70 MOA
Side Parallax Adjustment
no
Objective Diameter
40mm
Tube Diameter
25.4mm
Diopter Compensation
±2.5 Dpt
Click Value
1/4”
lllumination
5 red/green
Length
312mm
Weight
442g/15.60z
Shock- proof
YES
Water- proof
YES
Fog- proof
YES
Nitrogen Filling
YES
Video Archive
video of ht 3-9x40
Lens Technology
Fully Multi-Coated Lens
Fully Multi-Coated Lens
Up to 95%
Light Transmittance
Light Transmittance
For brighter, sharper, high-contrast imaging — even in low-light conditions.
95%
Transmittance
Our Lens
Fully Multi-Coated · 95% Transmittance
Crystal clear · Brighter · High contrast
VS
Other Lens
Single Coated · Darker, Blurry Image
Low transmittance · Reduced clarity
Illumination System
Dual-Color Illumination
5 BRIGHTNESS LEVELS
SELECTOR DIAL
R3
SELECTED

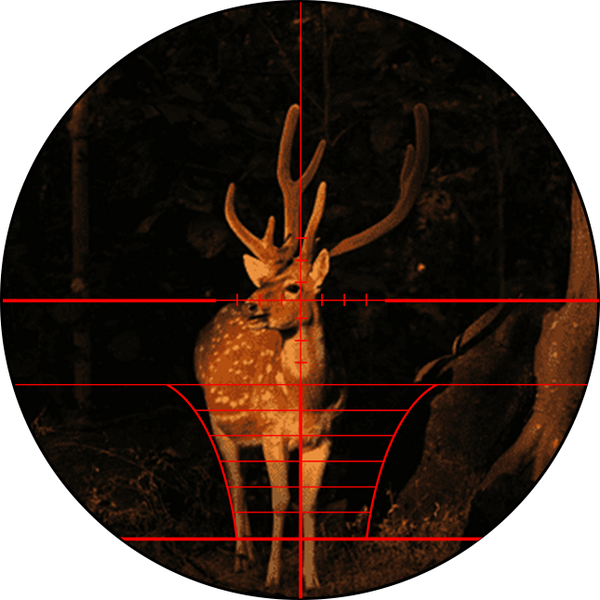

Red — Low light / Night

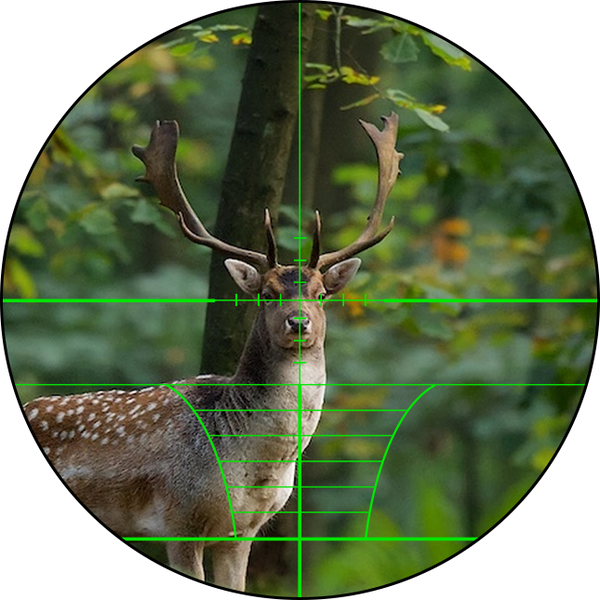

Green — Bright / Day
Off — Power save
Night / Low Light
VS
Day / Bright Light
SHOWCASE
Gear designed for the extreme
01
02
In the Box
Package Contents

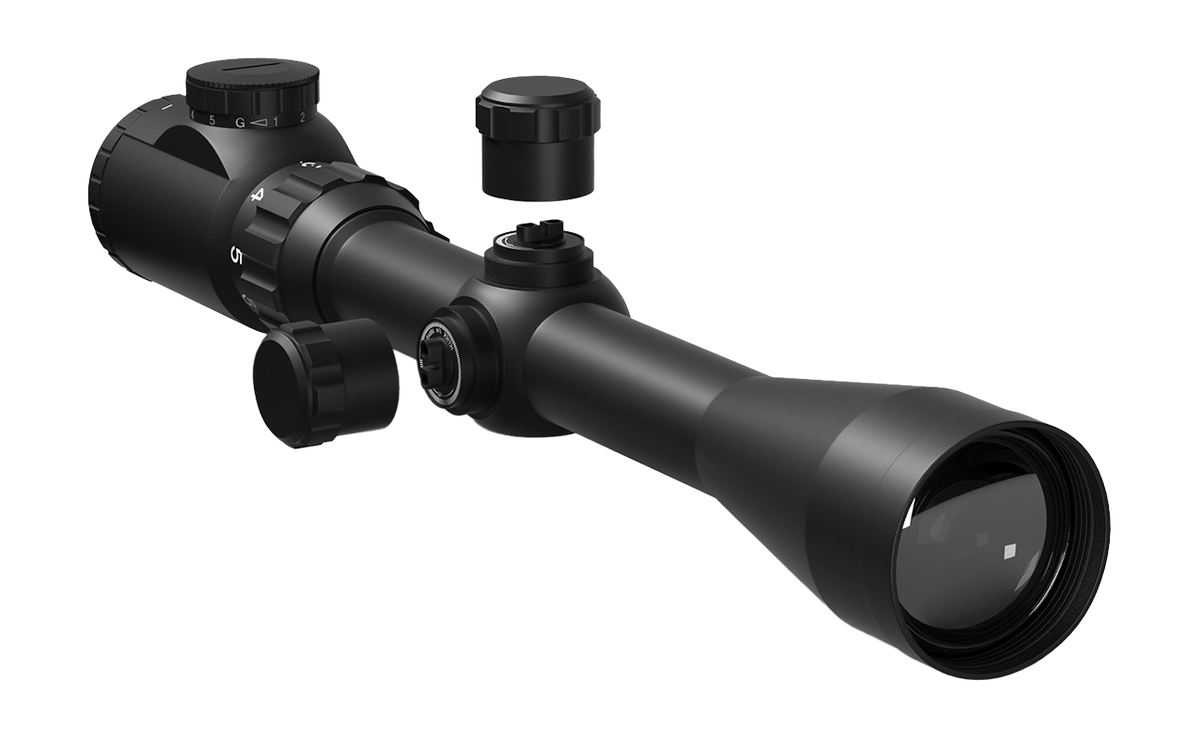

3-9×40Rifle Scope
x1
Scope Rings
x1
Lens Cover
x1
CR2032 Battery
x1
Allen Wrench
x1
Lens Cloth
x1
